RAM-B-174U - RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate

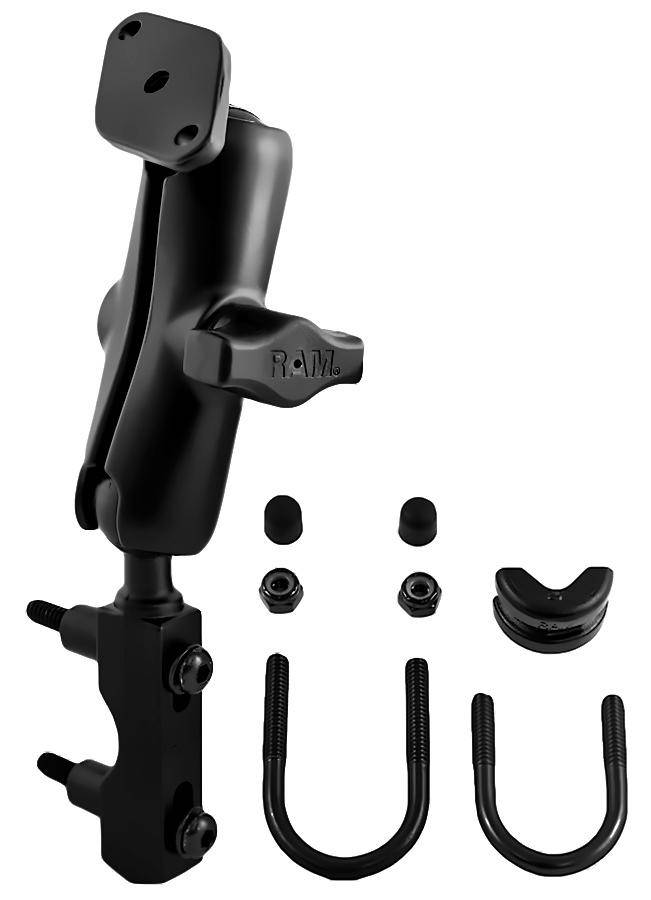

The RAM-B-174U consists of a 1" diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.

Included with Purchase:
(1 qty) Base/ball adaptor (attaches directly to cradle)
(1 qty) Standard size double socket arm
(1 qty) Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
Hardware for mounting to either brake/clutch reservoir or rail/handlebar

Specifications:

• Material: Powder Coated Marine Grade Aluminium
• Ball Size: 1" Rubber Ball "B" Size

Note: The RAM-B-174U can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the RAM-B-174U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". The "U" in the part number reflects product packaged in poly bag.
